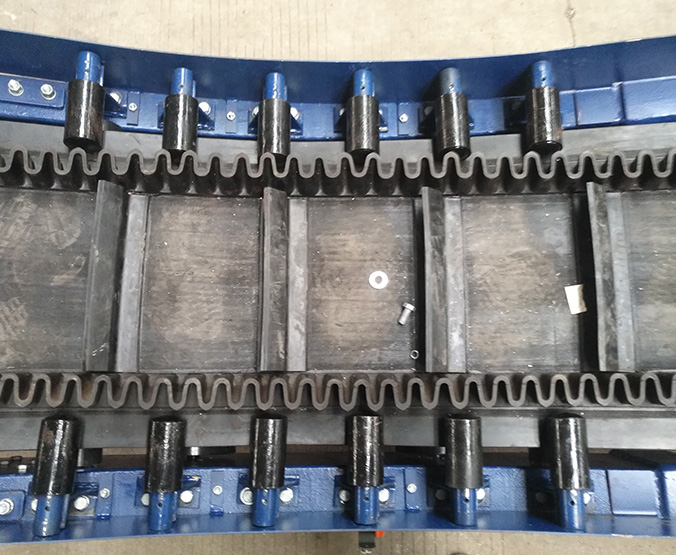

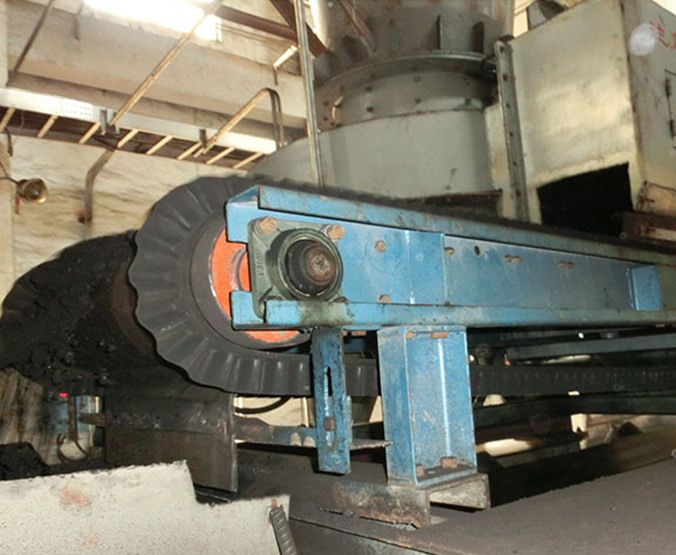

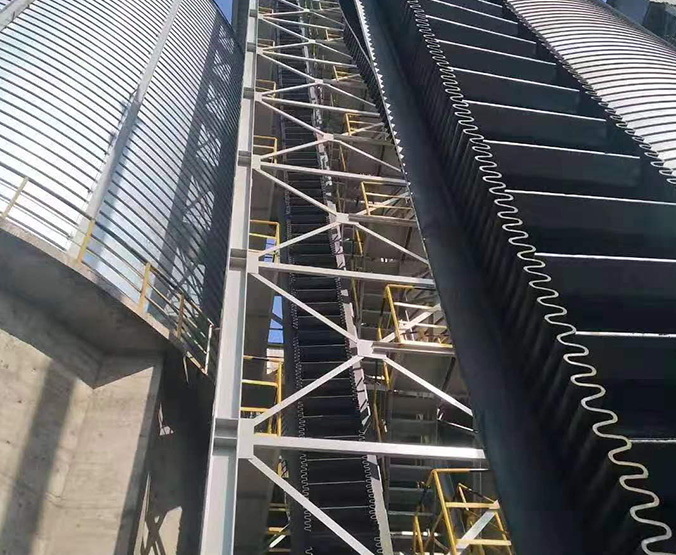

Ripple flange belt conveyor are capable of conveying material up a steep incline of up to 90 by utilizing a ripple flange belt. These conveyors require a smaller space and have adjustable angles.
Ripple flange belt conveyor are capable of conveying material up a steep incline of up to 90 by utilizing a ripple flange belt. These conveyors require a smaller space and have adjustable angles. It is widely used in seaport, wharf, metallurgy industry, mechanical industry, power sation, building material for bulk materials transportation.
| Width(mm) | 300 | 400 | 500 | 650 | 800 | ||||||||
| Flange height(mm) | 40 | 60 | 60 | 80 | 80 | 120 | 120 | 160 | 120 | 160 | 200 | 240 | |
| Capacity(m3/h) different angel | 30 | 15 | 14 | 20 | 34 | 46 | 71 | 104 | 120 | 128 | 157 | 195 | 235 |
| 45 | 11 | 10 | 14 | 26 | 35 | 57 | 83 | 97 | 102 | 127 | 157 | 195 | |
| 60 | 8 | 7 | 10 | 18 | 25 | 40 | 58 | 69 | 72 | 90 | 112 | 142 | |
| 90 | 4 | 4 | 5 | 10 | 13 | 21 | 31 | 37 | 38 | 48 | 60 | 76 | |
