Long Distance Curve Belt Conveyor

Long distance belt conveyor is convenient and economical, and it does not limit the located condition. It also includes curve belt conveyor and overland belt conveyor.

Introduction

Long distance belt conveyor/overland belt conveyor is convenient and economical, and it does not limit the located condition. It also includes curve belt conveyor and over land belt conveyor.

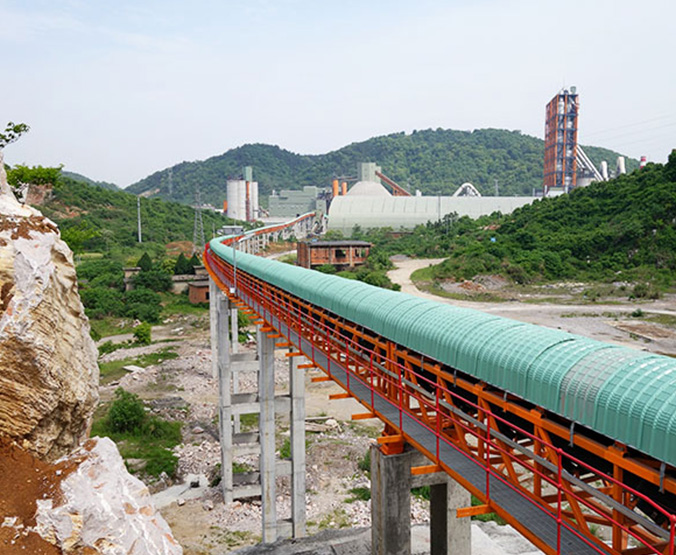

The long distance curve belt conveyor can be designed of curve placement according to the landform, by the hand of curve one after another material will be carried to its destination, none transportation needs to be placed in the middle of a way or distance, it not only reduces the investment, but also save the costs of maintenance as well as operation.

Model capacity(t/h) width(mm) speed(m/s) length(mm) angel Pulley diameter Roller diameter Motor
DTS65/20/22 200 650 1.63 500 5 450 89 22
DTS80/40/2X30 400 800 1.63 500 5 450 89 2X30
DTL50/10/30 100 650 1.63 400 5 450 89 30
DTL65/20/2X30 200 650 1.63 400 5 450 89 2X30
DTL65/20/2X37 200 650 1.63 500 5 450 89 2X37
DTL65/10/2X45 100 650 1.63 1000 5 500 89 2X45
DTL65/20/2X40 200 650 2 600 5 500 89 2X40
DTL80/30/2X30 300 800 1.63 500 5 450 89 2X30
DTL80/40/2X37 400 800 1.63 600 5 450 89 2X37
DTL80/40/2X45 400 800 1.63 600 5 500 89 2X45
DTL80/40/2X40 400 800 2 500 5 500 89 2X40
DTL80/40/2X55 400 800 2 700 5 500 89 2X55
DTL80/40/2X75 400 800 2 1000 0-2 630 89 2X75
DTL80/40/2X90 400 800 2 1200 0-2 630 89 2X90
DTL80/40/2X110 450 800 2 1300 0-2 630 89 2X110
DTL100/50/2X40 500 1000 2 300 5 500 108 2X40
DTL100/50/2X55 500 1000 2 300 5 500 108 2X55
DTL100/63/2X75 630 1000 2 700 0-2 630 108 2X75
DTL100/50/2X90 500 1000 2 1000 0-5 630 108 2X90
DTL100/65/2X110 650 1000 2 1000 0-3 630 108 2X110
DTL100/60/3555 600 1000 2.5 400 15 1000 108 355S
